储能逆变器

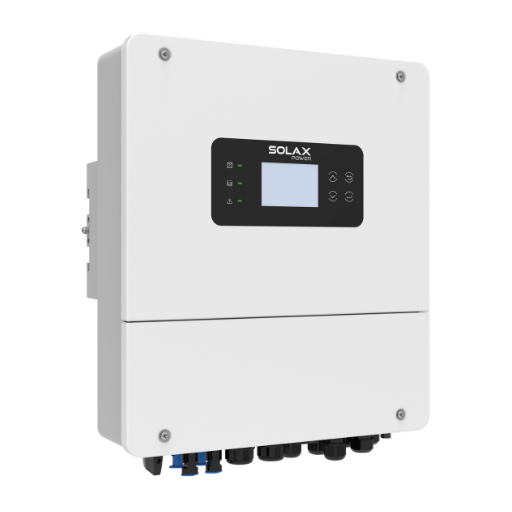

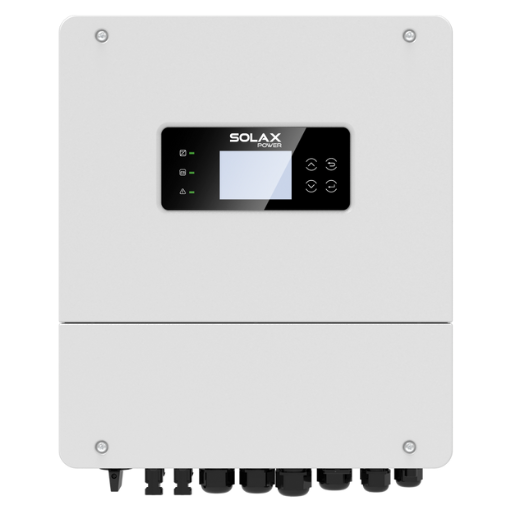

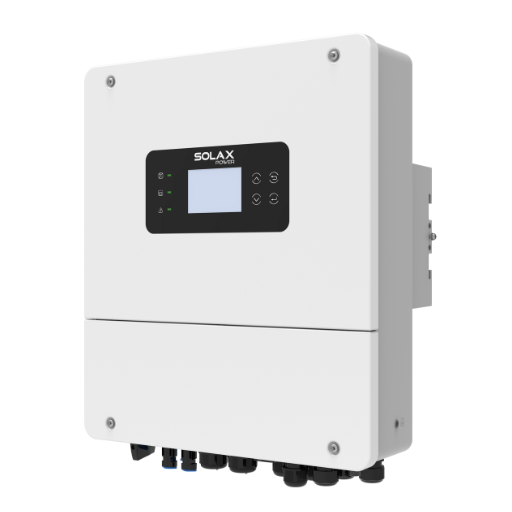

"黑桃tv在线观看" X1-HYB LV
- 3.0千瓦 / 3.7千瓦 / 4.0千瓦 / 5.0千瓦 / 6.0千瓦
- 观看视频
产品优势
X1-Hybrid LV系列（功率覆盖3kW至6kW）配备直观易用的LCD显示屏 黑桃tv直播，满足现代家庭能源管理需求，该逆变器还支持便捷的发电机与微电网接入，是各类混合太阳能应用的理想选择。
智能管理
单机UPS级切换时间＜4ms
全局MPP扫描，实现最优发电效率（该功能将通过后续升级开放） 在线视频平台.
智能负载管理
高性能表现
支持200%光伏超配及最高110%交流输出
EPS峰值功率达200%（可持续10秒）
最大120A充放电电流
- 低启动电压，延长系统运行时间
稳定可靠
电池端子温度实时监测
IP65防护等级
交直流侧均配备II级浪涌保护装置
可选配AFCI直流拉弧保护
灵活适配 (黑桃tv)
最大支持3机并离网并联运行
具备微电网及发电机接入功能 黑桃tv，适用多种应用场景（该功能将通过后续升级开放）.
最高16A直流输入电流 黑桃tv在线观看，适配大功率光伏组件.
Product Parameters
"黑桃tv视频资源" X1-HYB-3.0-LV- PV INPUT
Max. recommended PV array power 6000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A - AC INPUT & OUTPUT(ON-GRID)
Rated output power 3000 W Rated AC voltage 1/N/PE, 220/230/240 V - EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 6000 VA, 10 s Switchover time <4 ms - GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
- X1-HYB-3.7-LV
- PV INPUT
Max. recommended PV array power 7360 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A - AC INPUT & OUTPUT(ON-GRID)
Rated output power 3680 W Rated AC voltage 1/N/PE, 220/230/240 V - EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 8000 VA, 10 s Switchover time <4 ms - GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 16.5 kg
- X1-HYB-4.0-LV
- PV INPUT
Max. recommended PV array power 8000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A - AC INPUT & OUTPUT(ON-GRID)
Rated output power 4000 W Rated AC voltage 1/N/PE, 220/230/240 V - EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 8000 VA, 10 s Switchover time <4 ms - GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 16.5 kg
- X1-HYB-5.0-LV (黑桃tv直播)
- PV INPUT
Max. recommended PV array power 10000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A - AC INPUT & OUTPUT(ON-GRID)
Rated output power 5000 W Rated AC voltage 1/N/PE, 220/230/240 V - EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 10000 VA, 10 s Switchover time <4 ms - GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
- "黑桃tv在线观看" X1-HYB-6.0-LV
- PV INPUT
Max. recommended PV array power 12000 Wp Operating voltage range 80 ~ 520 V No. of MPP trackers / strings per MPP tracker 2(1/1) Max. input current per MPPT 16 A/16 A - AC INPUT & OUTPUT(ON-GRID)
Rated output power 6000 W Rated AC voltage 1/N/PE, 220/230/240 V - EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Peak EPS output power 12000 VA, 10 s Switchover time <4 ms - GENERAL
Ingress protection IP65 Dimensions (W × H × D) 397 × 490 × 201 mm Net weight 17.3 kg
